Extra High Strength Steel was used in the manufacturing process to increase durability while reducing weight to improve excavator performance.
Product Details
Industry solutions:
| Quick Coupler Technical Data: | ||||||||
| Item/Model | Unit | YLMINI | YL45 | YL50/55 | YL60/65 | YL70/80 | YL90 | YL100/110 |
| Overall Length | Mm | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1173 |
| Overall Height | Mm | 246 | 307 | 310 | 388 | 492 | 574 | 558-610 |
| Overall Width | Mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
| Pin to Pin Center Distance | Mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
| Forearm Open Width | Mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
| Retractable Distance of Oil Cylinder | Mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 |
| Top to Bottom Pin Distance | Mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
| Pin Diameter | Mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
| Weight | Kg | 25 | 50-60 | 80 | 120-130 | 280-290 | 420-430 | 450-580 |
| Working Pressure | Kg/cm | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
| Required Oil Flow | L/min | 10.0-20.0 | 10.0-20.0 | 10.0-20.0 | 10.0-20.0 | 10.0-20.0 | 10.0-20.0 | 10.0-20.0 |
| Suitable Excavator | Ton | 1.5-4 | 4.0-7.0 | 5.0-8.0 | 9.0-19.0 | 17.0-23.0 | 23.0-30.0 | 33.0-45.0 |

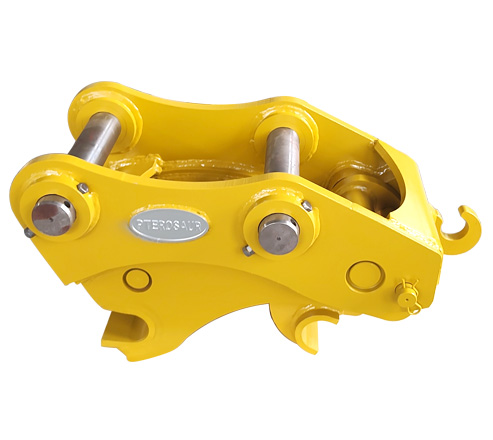

| ***Quick coupler is an ideal tool to mount various attachments on the excavators with easy and speedy. thanks to the advanced safety technology and user-friendly mechanism, it allows you more convenient and reliable in work conditions.*** | ||||||||
Advantages:
1. When compared to direct mount, the Pterosaur coupler can save you 25% of the total machine operating time.
2. The operator can change attachments for the safety and comfort of their cab.
3. A smaller design means a larger tip radius, which increases breakout force.
Note:
1. Delivery time: Usually within 7-10 days after order confirmation and payment.
2. Warranty period: 12 Months.
3. Payment terms: T/T payment 30% in advance and balance payment against the bill of lading.
